WP 11012

Maintenance-of-Way 11012 Gondola



Model:

Operating Weight:  168,400 lbs.

Builder:  Western Wheeled Scraper Co

Length:  37 ft. 6 in.

Built:  1927

Builder #:

Status:  Display








Western Pacific Maintenance-of-Way 11012 Gondola

This car, WP 11012, from the WP series 11001-11040 was built in 1927 by Western Wheeled Scraper Co. for Six Companies, Inc, and used for the building of Hoover Dam. WP bought their 40 cars from Six Companies after the dam was completed. Cars of this type were used by the WP to haul rock and ballast in Maintenance-of-Way service. Originally painted black with large white Western Pacific on the sides they ended up being painted yellow.

They were used by the WP right up to the Union Pacific takeover. They were changed very little during service, and 11012 is a good representative of this class of car.

/gondola_pages/src_html/gondola_images/wpmw_11012_022709_DSC_4958_375x251.jpg

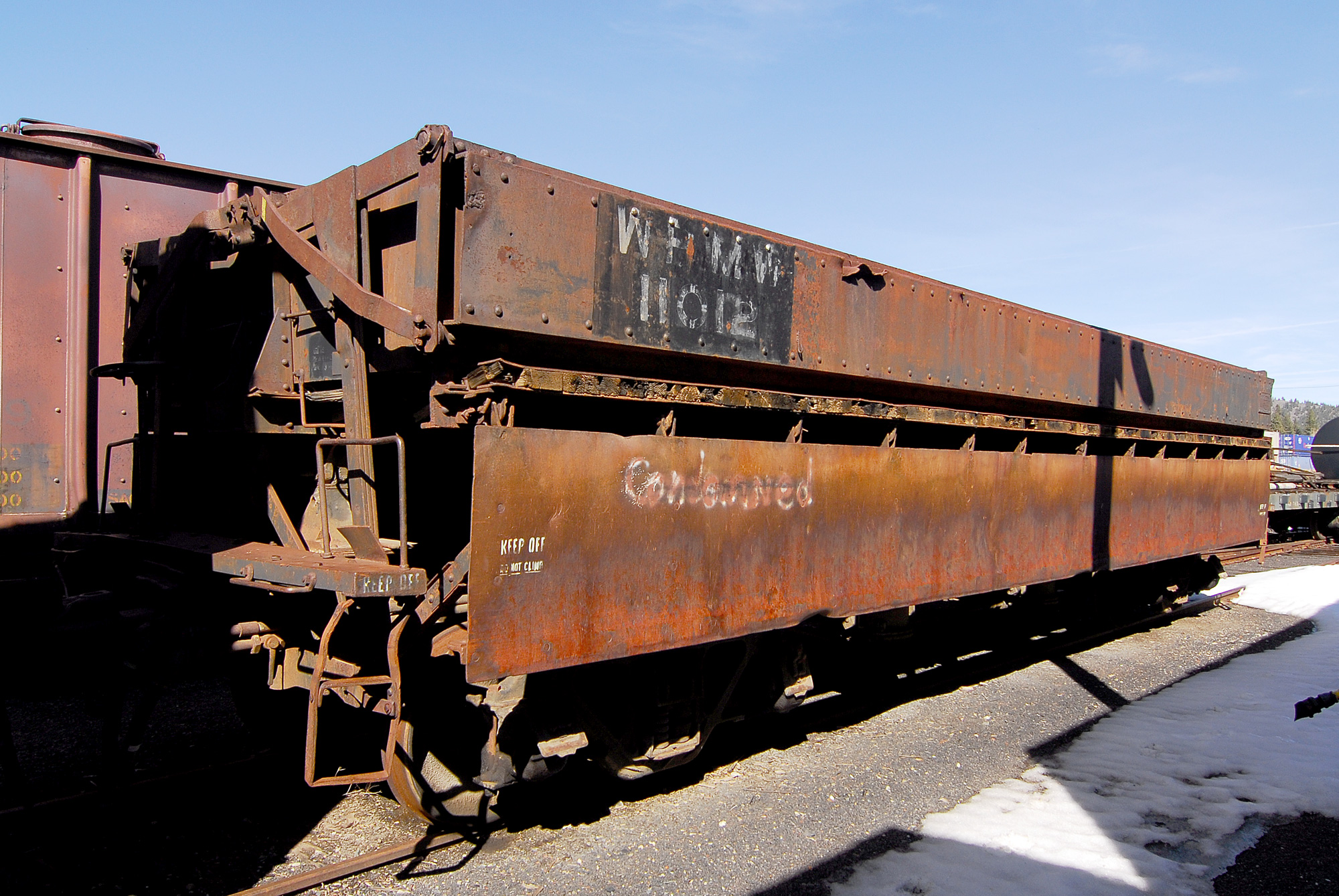

WP 11012 - photo by Mike Mucklin

/gondola_pages/src_html/gondola_images/wpmw_11012_022709_DSC_4959_375x251.jpg

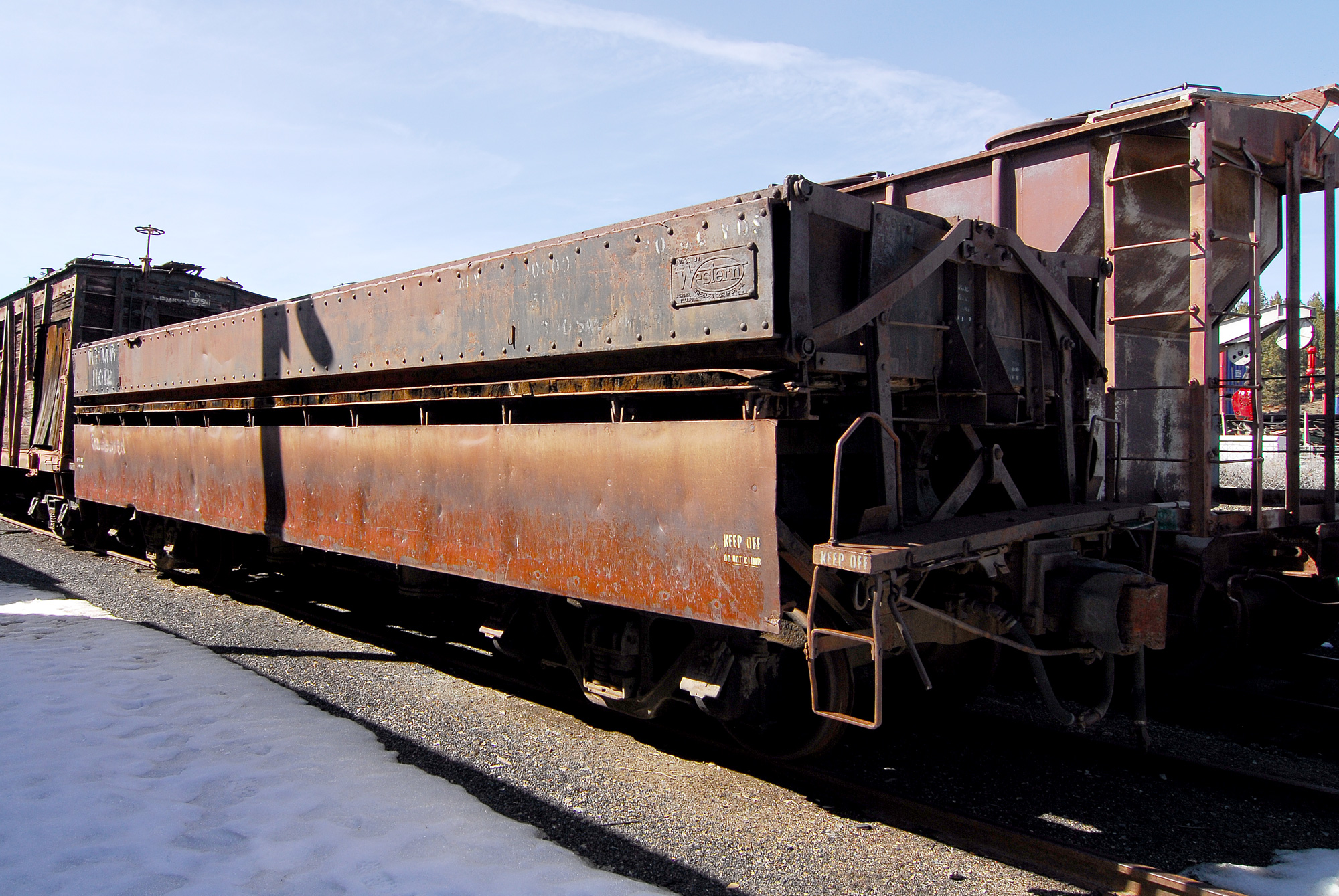

WP 11012 - photo by Mike Mucklin

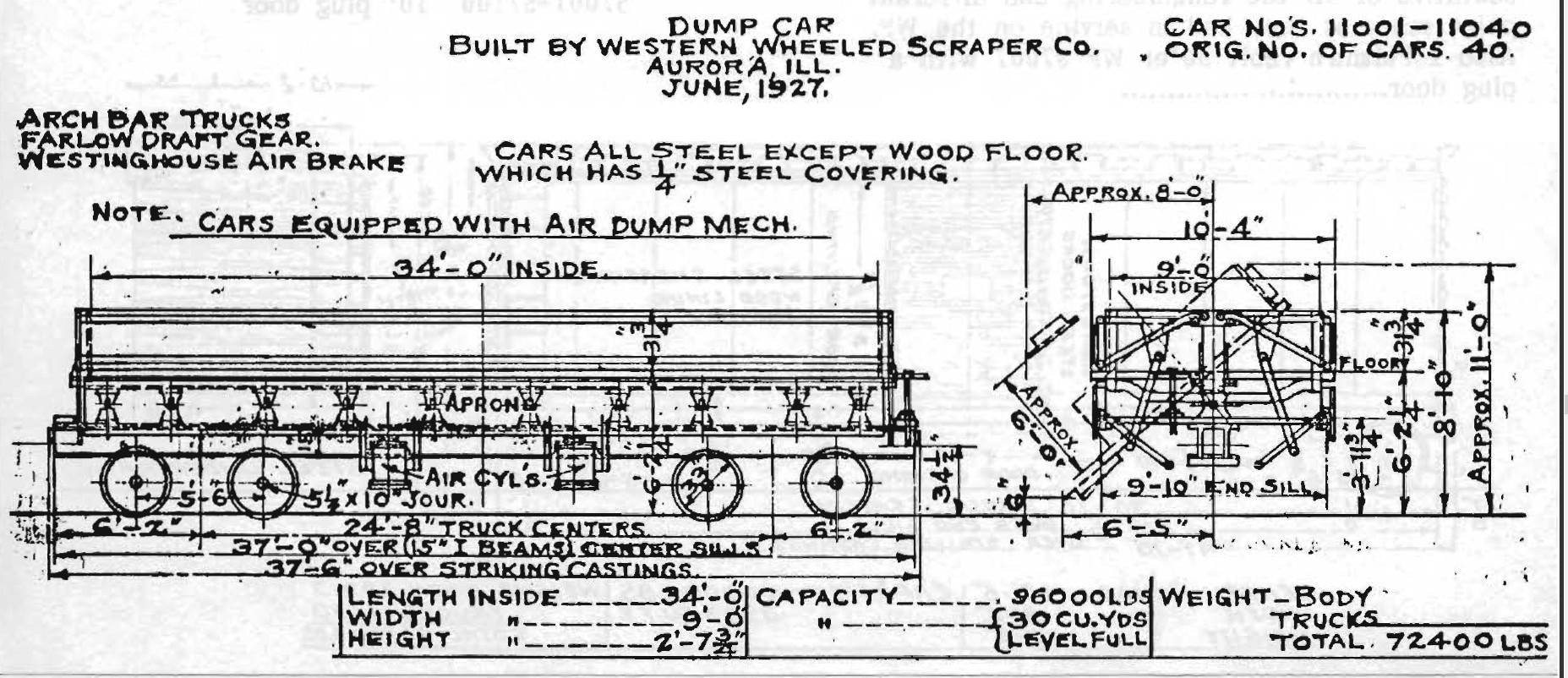

WP 11012 drawing

WP 11001 - 11040

/collectionpageimages/freightcarimages/gondolas/wpmw11012_375x276.jpg

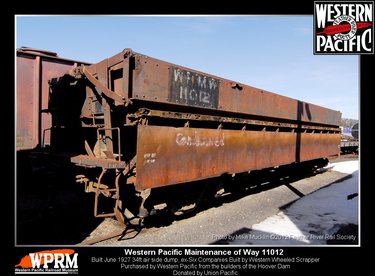

WP 11012 - photo by Mike Mucklin

/gondola_pages/src_html/gondola_images/wpmw_11012_gelems_201108_DSC_1214_375x251.jpg

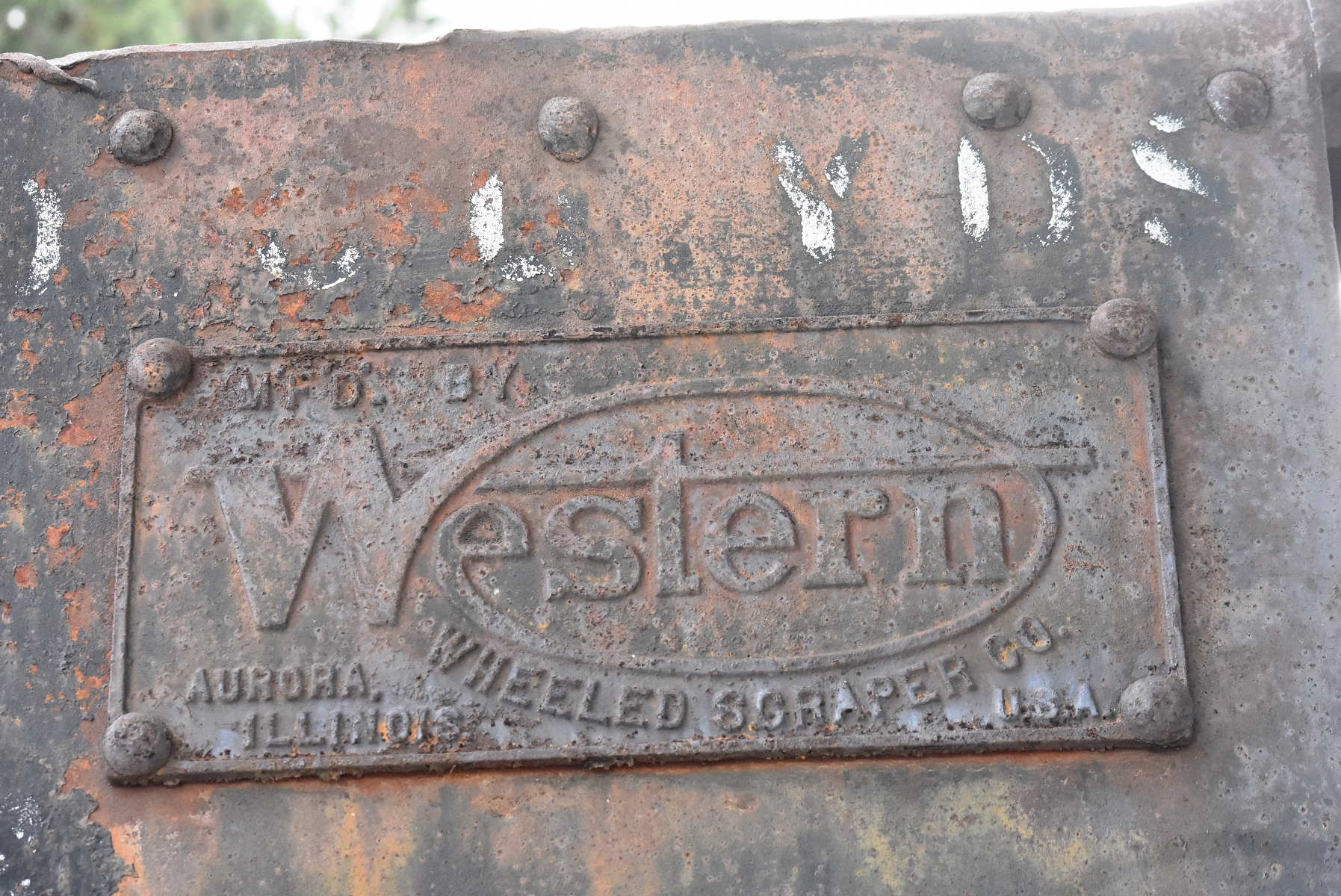

WP 11012 Builder Plate - photo by Greg Elems

Links to Train Sheet articles about WP 11012:
Train Sheet #016, Page 9:  Air Dump WP 11012
Train Sheet #011, Page 5:  The Wheel Report
